F1-Informed Multi-Agent Reinforcement Learning

1. Project overview

The main question this project tries to answer is whether giving agents access to a simple psychological state variable actually helps them learn better in a cooperative multi-agent setting. The idea came from watching how Formula 1 drivers behave differently depending on their experience level and how their confidence changes over the course of a race. A rookie like Antonelli will make noisier decisions than a veteran like Sainz, and a driver who just got overtaken will likely perform worse for the next few laps.

To model this, I pulled real 2025 F1 lap-time data using the FastF1 API and used it to give each agent a driver-specific experience profile based on how consistent their lap times were across the season. A small wrapper around the PettingZoo environment then adds noise to each agent's actions scaled by their experience, and tracks a psych_state variable that goes down after bad team rewards and slowly recovers over time.

Two setups are compared throughout the project. The tabular Q-learning baseline shows that including psych_state in the state gives higher Strategy Resilience Score (SRS) even when the raw returns look similar. The MAPPO runs test whether the same pattern holds with deep RL and also validate the whole pipeline on a standard benchmark environment.

2. System components

3. Environment description

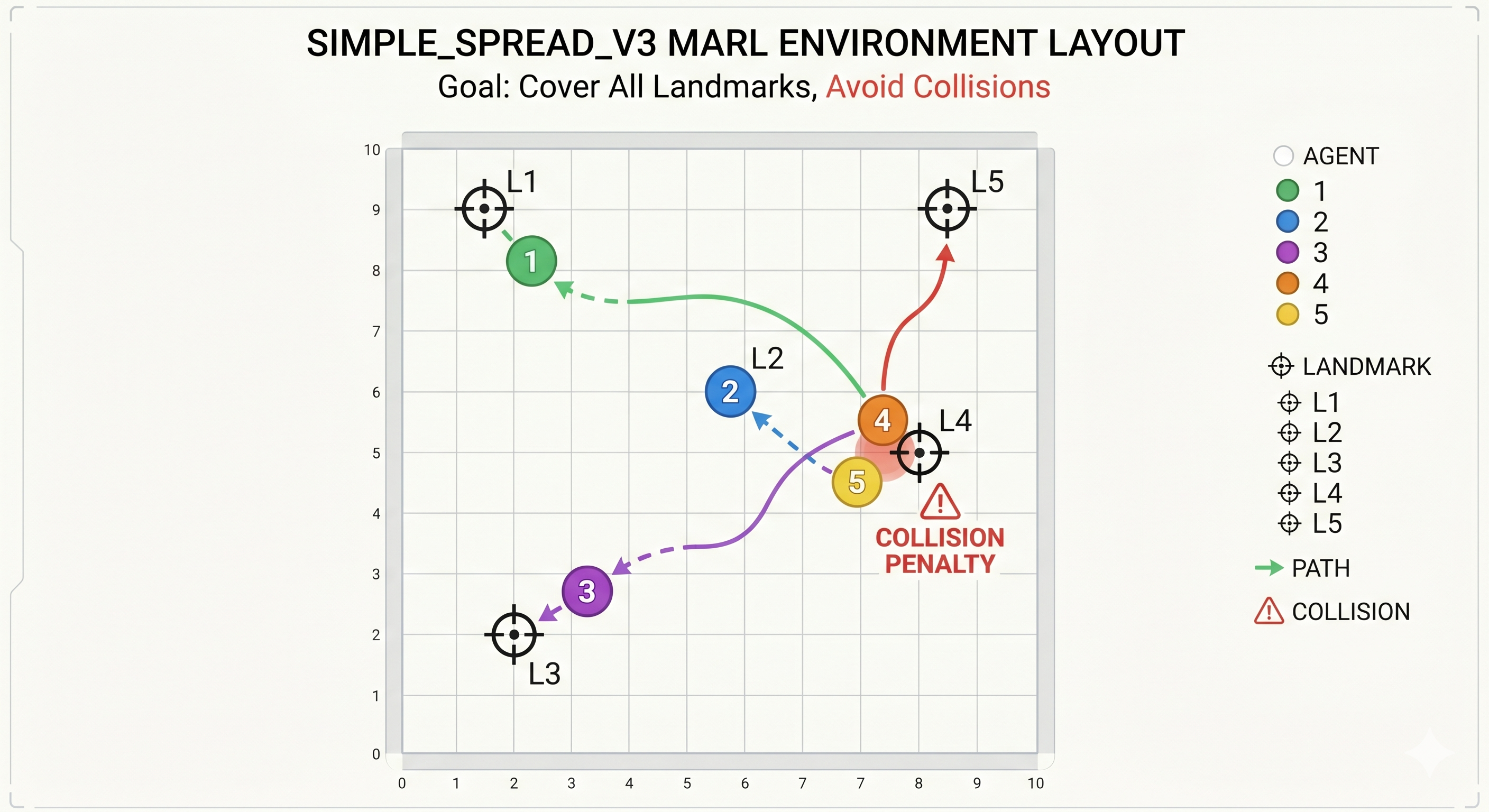

PettingZoo's MPE simple_spread_v3 in parallel mode gives each agent a continuous observation of its own position and velocity plus relative positions of all landmarks and other agents. The team reward penalizes how far agents are from covering landmarks, so coordination is necessary. build_experience_profiles maps PettingZoo agent names to FastF1 driver statistics. The wrapper only changes actions and infos — not underlying physics, base observations, or the reward function.

4. Representations and architecture

Tabular setting

No neural network: state is the rounded, flattened observation tuple, with psych_state appended in the psych-aware condition. Q-values live in a Python defaultdict keyed on that tuple.

MAPPO setting

Parameter-shared multi-agent PPO through Ray RLlib — all agents share one policy. A JointObservationWrapper concatenates all agents' observations in fixed order and passes the combined vector to every agent before ParallelPettingZooEnv, giving the shared actor-critic team-level state similar to a centralized critic without a separate critic architecture.

5. Training setup and hyperparameters

Tabular agents learn independently from the same rollouts. MAPPO trains a single shared policy via RLlib PPOConfig. Table 1 lists main hyperparameters.

python scripts/train_mappo.py --env f1_psych \
  --driver-csv checkpoint_driver_stats.csv \
  --iterations 150 --out-json results/mappo/f1_psych.json

6. Training results and interpretation (tabular)

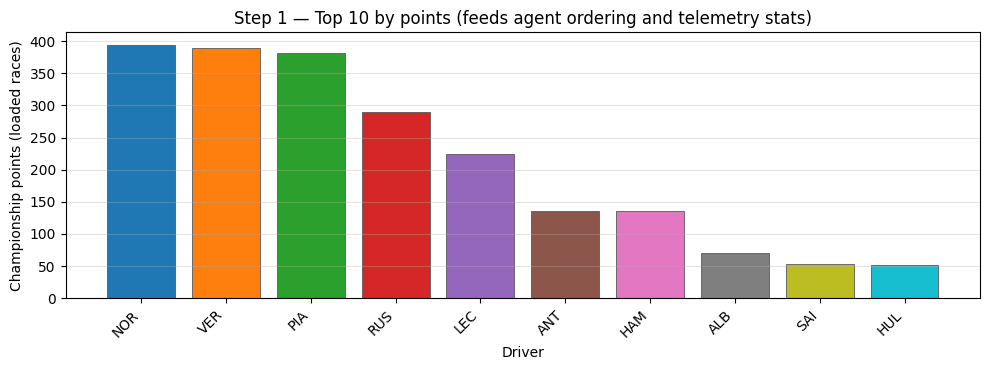

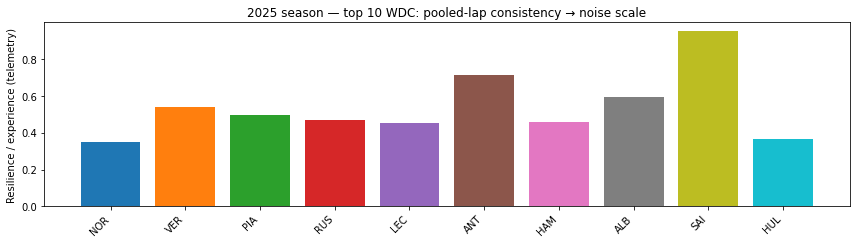

6.1 Season data: driver rankings and experience profiles

Championship points for the top-ten 2025 cohort determine which drivers become agents. Points do not directly set noise — lap-time consistency does. A driver can score well through consistent top-fives while another alternates podiums and retirements.

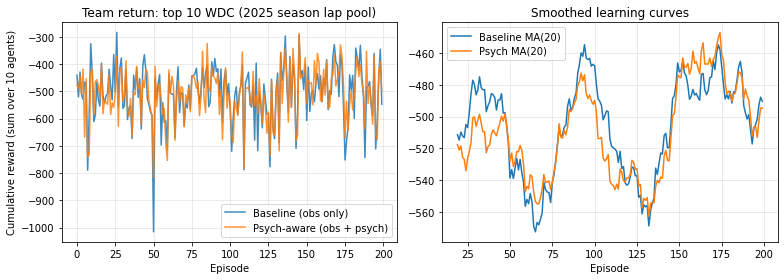

6.2 Learning curves: team return and moving average

With ten agents the raw signal is very noisy; a 20-episode moving average is easier to read. Baseline and psych-aware traces stay in a similar range — which is why SRS is the main comparison metric.

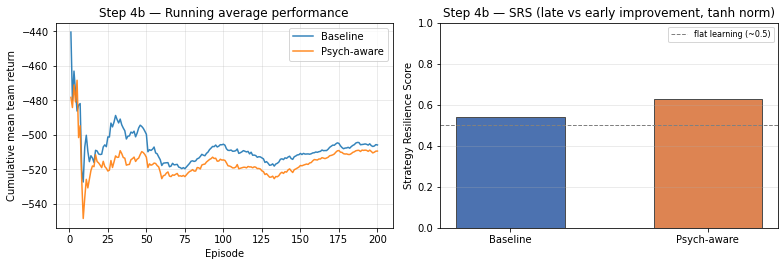

6.3 Running mean and Strategy Resilience Score

Cumulative mean team returns converge near −505 (baseline) and −510 (psych-aware), so raw return alone shows little difference. SRS tells a different story: psych-aware ≈ 0.63 vs baseline ≈ 0.54 — late episodes improve more consistently relative to run noise. Seeing psych_state helps develop stabler strategies even when the performance ceiling is similar.

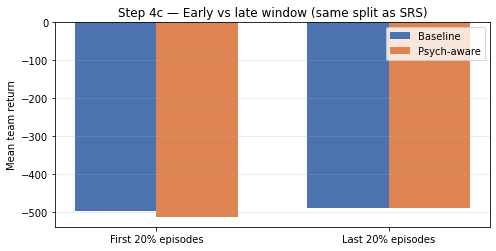

6.4 Early and late window analysis

Mean return in the first and last 20% of episodes: both conditions improve, but psych-aware shows a slightly larger gain — confirming SRS is not a normalization artifact.

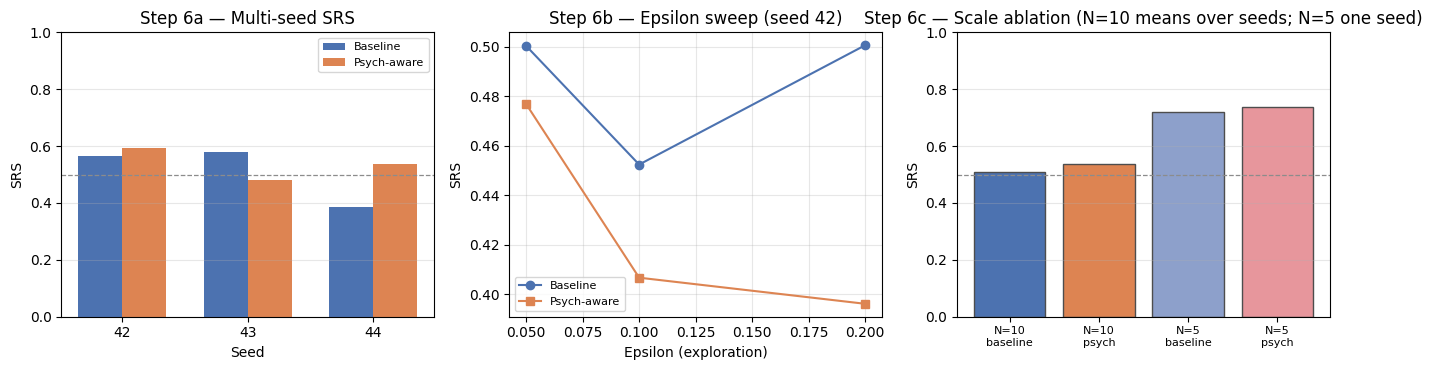

6.5 Multi-seed, epsilon sweep, and team-size ablation

Across three seeds, psych-aware has higher SRS in two of three (third near parity). Moderate ε ≈ 0.1–0.15 works best; too much exploration hurts resilience. Team size N = 5 generally beats N = 10 on SRS — fewer agents means less coordination complexity.

7. Evaluation summary

Tabular results

Adding psych_state to the Q-state improves learning consistency without noticeably changing final return. Psych-aware SRS ≈ 0.63 vs baseline ≈ 0.54; bootstrap intervals do not overlap. Late-window return is within ~1% of baseline — the SRS gain is about the training trajectory, not a raw performance boost.

Deep MARL results

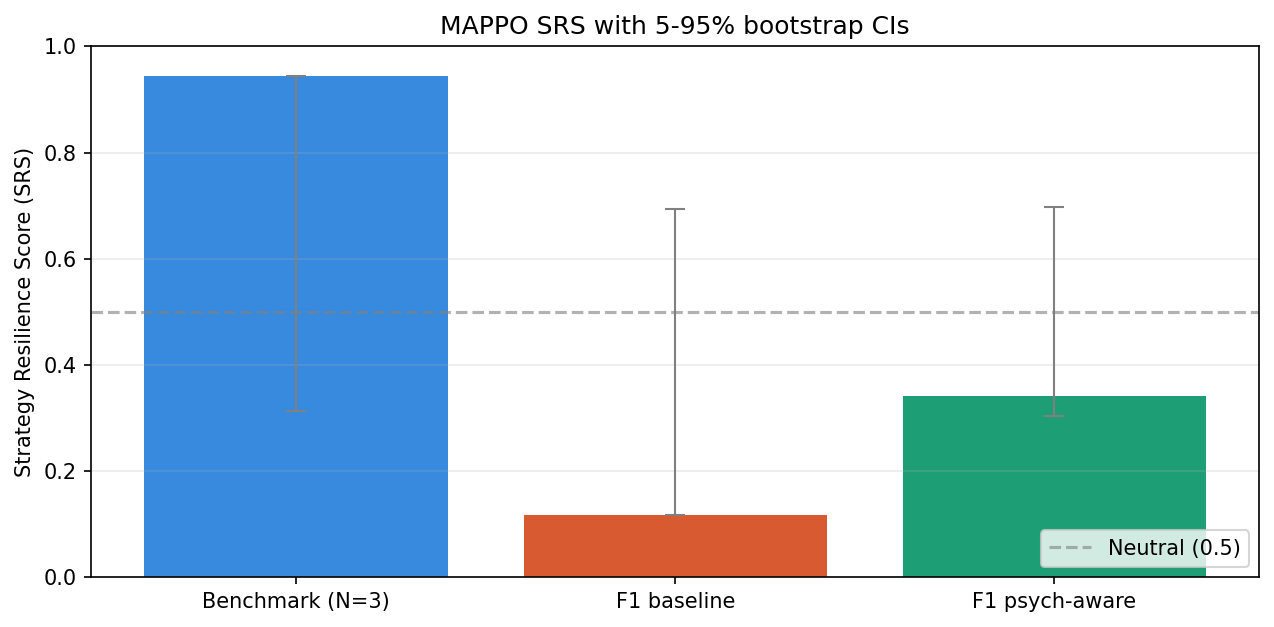

MAPPO benchmark (SpreadBenchmark-v0, N = 3) reaches SRS = 0.945 and return −72.55, confirming the implementation works. On the F1 task, psych-aware (SRS = 0.342, return −585.38) beats baseline (SRS = 0.117, return −621.64) on both metrics. F1 runs sit well below benchmark — expected with 10 agents and roughly 10× more negative rewards.

* Benchmark point SRS above reported CI: near-ceiling returns compress bootstrap percentiles below the point estimate when z is very large (tanh normalization edge case).

8. Telemetry and real-world connection

Figures 2–3 determine roster and per-agent behavior before learning. Three concrete links to real F1 data:

1. Lap σ → action noise — each driver's pooled lap-time spread sets perturbation scale (e.g. Antonelli's wider 2025 distribution → more disruptive noise).
2. Top-10 roster — from actual 2025 championship standings, not synthetic ordering.
3. Peer normalization — spread_experience_from_peers preserves relative consistency within the real cohort.

Behavioral differences between agents are grounded in empirically observed 2025 variance, satisfying the course real-world RL application requirement.

9. Deep MARL: standard benchmark and MAPPO

9.1 Off-the-shelf benchmark

Standard simple_spread_v3 with N = 3 and no wrapper (SpreadBenchmark-v0) checks that MAPPO works before F1 complexity and provides a reference for SRS and return. Random policy scores well below −100; converging to −72.55 confirms genuine learning.

9.2 MAPPO with parameter sharing

f1_baseline: F1 roster, no psych_state in obs, action noise off. f1_psych: PsychStateObsWrapper appends mood; action noise on. Both run 150 iterations.

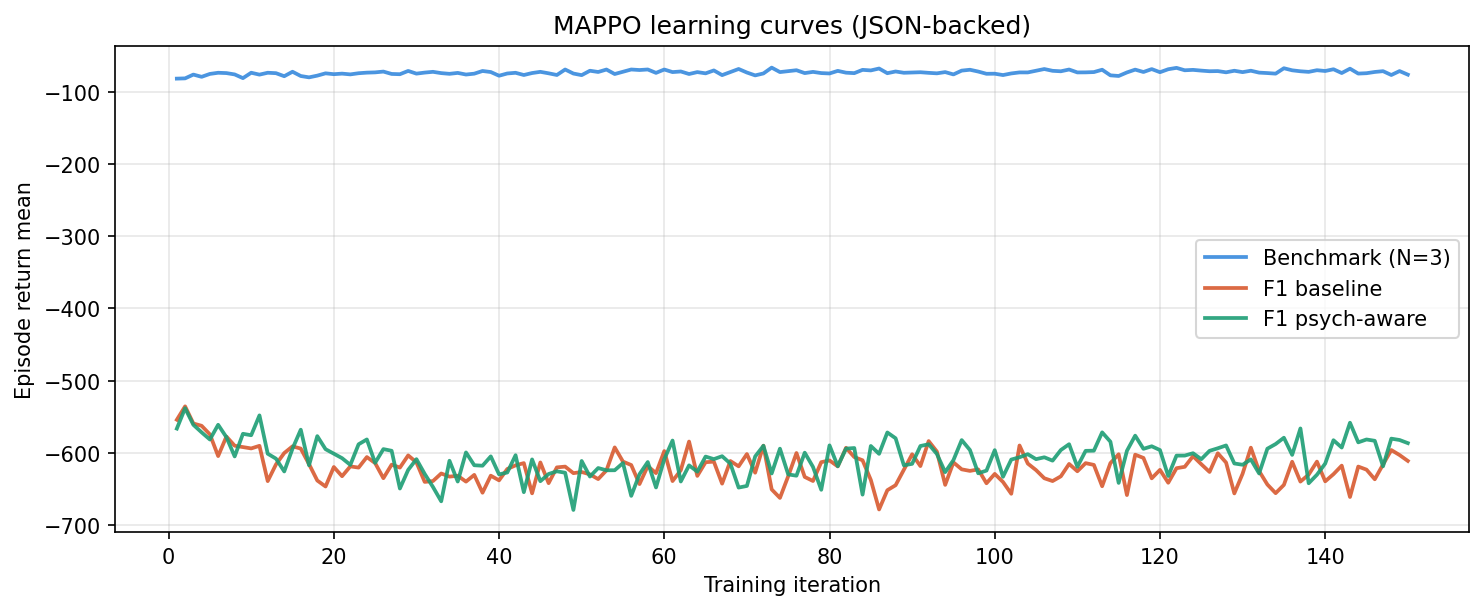

9.3 MAPPO results

Benchmark climbs to ~−72. F1 runs stay in −500 to −700, but f1_psych stays above f1_baseline — psychological observations help the shared policy. Psych SRS ≈ 0.342 is ~3× baseline 0.117, matching the tabular consistency finding.

9.4 Adaptation curves and noise-scale ablation

psych_state trajectories for veteran SAI vs rookie ANT: Sainz stays near 1 with shallow dips; Antonelli drops more often and recovers slower — as designed. Both trend upward in later steps as coordination improves and large team penalties become rarer.

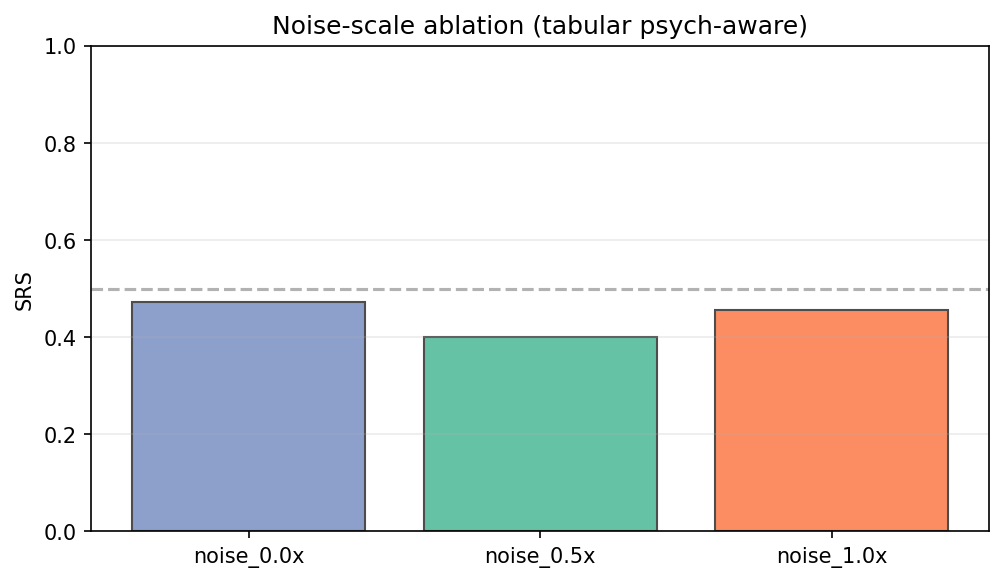

Noise ablation at 0×, 0.5×, and 1× experience-derived perturbation: SRS changes at each scale without a clear monotonic trend — both observation augmentation and action noise contribute.

10. Overall interpretation

Tabular and MAPPO experiments point the same way: psychological state tends to improve how consistently agents learn, even when final return barely moves. SRS captures improvement in the training curve shape, not just the endpoint.

The F1-vs-benchmark gap is largely environment difficulty (10 agents, rewards near −600 vs −72). More interesting: in the harder setting, psych-aware consistently beats no-psych on SRS and final return.

A natural extension is a richer psychological state — e.g. tracking recent performance trends rather than only the current penalty — to see if resilience modeling can push returns as well as consistency.

Full source, notebook, helper.py, training scripts, and LaTeX report live on the main branch at github.com/Kritarth-Dandapat/PaddockPsychRL.
